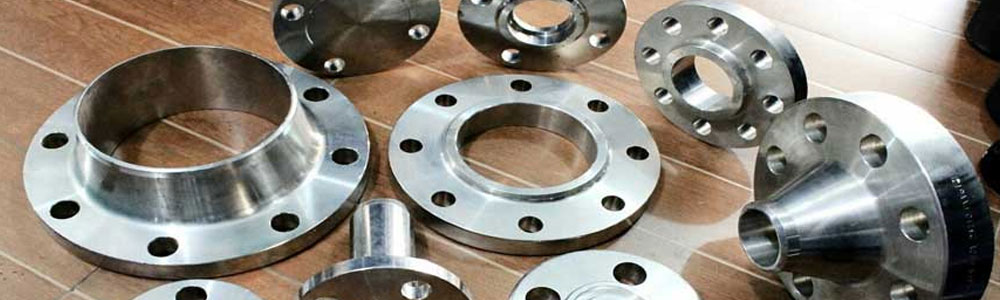

We, Hittco Metaliks Overseas are one of the leading manufacturers, suppliers, traders and stockists of Stainless Steel Flanges, Pipe Flanges, Slip on Flanges, Blind Flanges, Threaded Flanges, Orifice Flanges, Socket weld Flanges, Weld Neck Flanges, Lap Joint Flanges. These products are known in the market for their longer functional life, corrosion resistance and high tensile strength. The detailed description of the products is mentioned below:
The products we offer are widely appreciated in the market for their resistance against corrosion, seamless finishing and dimensional accuracy. Hittco Metaliks Overseas are manufacturer, supplier and exporter of Stainless Steel, Carbon Steel, Alloy Steel, High Nickel Alloy, Hastelloy, Alloy 20, Inconel, Monel, Titanium, Copper Nickel, Duplex Steel, Super Duplex Steel Flanges, Slip on Flanges, Blind Flanges, Socket weld Flanges, Threaded Flanges, Weld Neck Flanges, etc.
STEEL FLANGES SPECIFICATION
| Dimensions : ANSI B16.47 Series A & B, ANSI B16.5, ASA, API-605, MSS SP44, AWWA, Custom Drawings |
| Size : 1/2" (15 NB) to 48" (1200NB) |
| Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6, 10, 16, 25, 40 Etc. |
| DIN : DIN 2527, DIN 2566, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2573, DIN 2576, DIN 2641, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2635, DIN 2636, DIN 2633, DIN 2634, DIN 2637, DIN 2638, DIN 2673 |
| BS : BS4504, BS4504, BS1560, BS10 |
| Type : Raised Face (RF), Flate Face (FF), Ring Type Joint (RTJ) |
| Form : Threaded Flanges, BLRF Flange, Spectacle Blind Flanges, Orifice Flanges, Spacer Ring Flanges, Slip on Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Socket weld Flanges, WNRF Flange, Weld neck Flanges, Nipolet Flanges, Plate Flanges, Flat Flange, SORF Flange, Long weld Neck Flanges, RTJ Flanges, Nipo Flange, Forged Flanges, Blind Flanges |
FLANGES MATERIALS AND GRADES
Stainless Steel Flanges : ASTM A182, A240 - 304, 304L, 310, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 410, 416, 420, 430, 431, 904L
Duplex & Super Duplex Steel Flanges : ASTM A182, ASME SA182 F44, F45, F51, F53, F55, F60, F61
Carbon Steel Flanges : ASTM A105, A350, A181, A516 / ASME SA105 LF 2 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Alloy Steel Flanges : ASTM A182, ASME SA182 A387 F1, F5, F9, F11, F12, F22, F91
Nickel Alloy Flanges : ASTM SB 564, SB 160, SB 472, SB 162 Nickel 200, Nickel 201, Monel 400, Monel K500, Hastelloy C22, Hastelloy C276, Hastelloy C2000, Hastelloy B, Nimonic 75, Nimonic 90, Nimonic 80A, Inconel 600, inconel 601, Inconel 617, Inconel 625, Inconel 718, Inconel 725, Inconel X-750, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Incoloy 926, Incoloy 890, Incoloy 925, Incoloy A286
Titanium Flanges : ASTM B 381, ASME SB 381 - Grade 2, Grade 5, Grade 7
